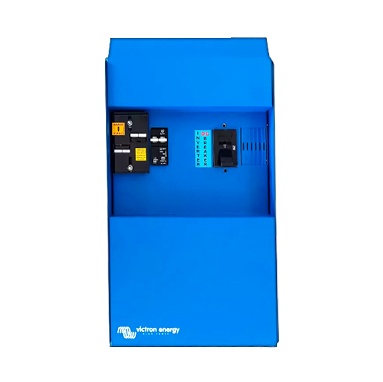

The Victron Energy VEP230121402 is a dedicated VE Panel (VEP) designed to work seamlessly with 3kVA and 5kVA MultiPlus and Quattro inverter/chargers.

Key Features:

• Pre-wired internal enclosure for simplified installation.
• Built-in AC bypass switch for convenience.
• Includes a 250 Amp DC disconnect breaker for battery to inverter/charger connection.
• Inverter AC input protection via overcurrent protection breakers.
• DIN mount AC and DC breakers for quick and efficient operation.
• Equipped with a 500A/50mV DC shunt for easy battery status monitoring.
• UL/CSA certified for indoor use, ensuring product quality.
• Versatile configurations available for single 120V, 230V, 120/240V, and 3-Phase systems.
• Complete with DC negative, positive, and ground busbars for DC loads and PV arrays.
• Mounting provisions provided for DIN rail DC load/disconnect breakers.
• Seamlessly integrates with Victron Energy's 3,000 and 5,000 Multi-Plus and Quattro inverter/chargers.
• Features convenient knockouts for inverter/charger and battery cables, PV connections, and DC panel mount breakers.
