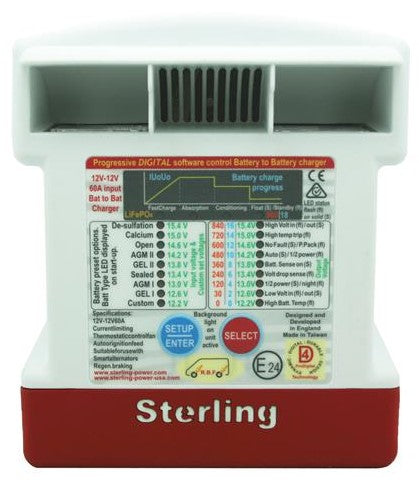

With Sterling Power DC to DC converter, you can charge your auxiliary battery bank with the correct multistage. Temperature compensated charging curve by using the input power of any vehicles alternator thru the start battery system automatically while the vehicle is running.

• Choose from 9 pre-set output charge profiles for battery chemistry options including AGM, LiFePO4, Gel, flooded and sealed, lead acid. or set your own with a user customizable profile. Loaded with features, optional remote displays available.



• Sterling Power DC to DC converter has a 12v input at up to 60 amps and output is 12v at up to 60 amps.



Simply connect in between a starting battery and house bank and any time the vehicle's alternator is running this smart charger will smart charge the output bank.





Sterling's range of Battery-to-Battery Chargers (B2Bs) has grown significantly over the past few years. This is in an effort to supplement the ever-growing demand from the commercial vehicle, recreational vehicle and marine industries. The B2Bs have become extremely popular as they fast charge batteries as you cruise along without the need for complex wiring, touching your alternator, voiding the alternator's warranty and tampering with the electronic control units (ECUs). You can provide the onboard batteries with a fast 4 stage charging profile with an amazingly simple and speedy installation. All the benefits of advanced charging without any of the drawbacks. Simply connect the B2B between the battery being charged and the battery you wish to charge.

Features:

• Safety features:



100% fireproof plastic box.

No screws to corrode.

Thermal power reduction.

Multistage fan cooling.

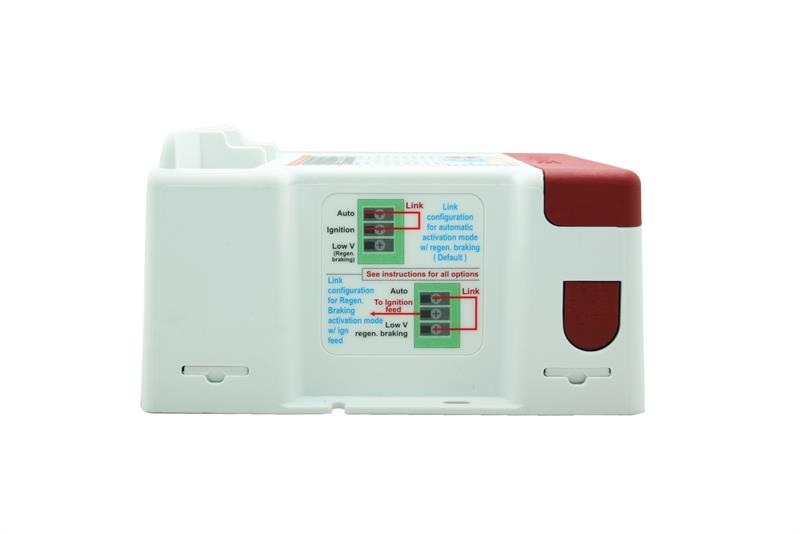

• Various Activation Modes:

 Default mode: Automatic which is Regenerative Braking Friendly and does not require an ignition feed to operate.

Ignition feed with timer.

Ignition feed without timer



• Input 12v & Output charging at 12



• No starter battery discharge as the current is NOT taken from the input battery and given to the output battery

The battery-to-battery charger uses alternator power to charge the output battery. Manual mode and regenerative braking mode allow you to override this.



• Dynamic thermal charging.

The charging voltage fluctuates between 158 – 180F based on the temperature of the sensor



• Night Time Setting

Allows the unit to ran at half the power so the fan noise is kept down.



• Boost / Reduce Charging

The battery-to-battery charger ensures batteries get the correct charging profile irrespective of high or low input voltages.



• B2B turns on at 13.6V and turns off at 13.3V (x2 for 24V).

Thus, does NOT drain input battery. Regenerative braking mode allows the input voltage to drop to 12.2V (x 2 for 24V).

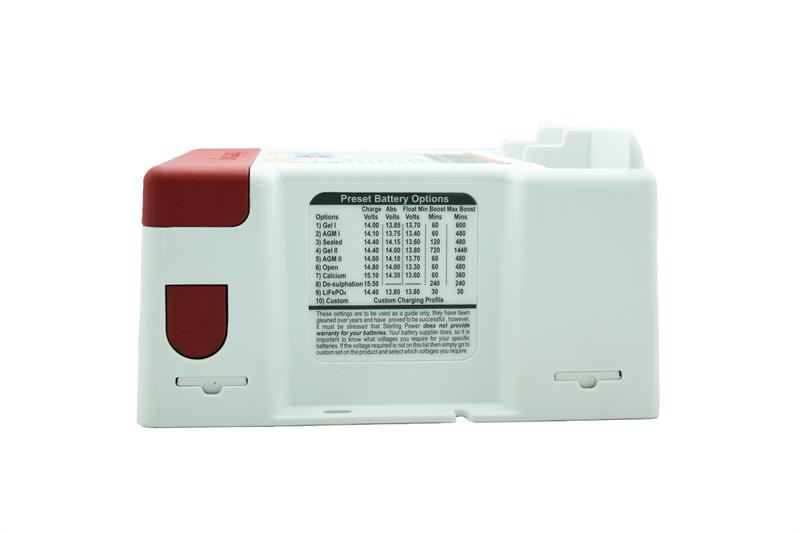

• 9 Pre-set battery chemistry options and Customizable Profile

Including AGM, LiFePO4, Gel, Flooded and sealed lead acid



• 4 stage battery charging:

The B2B charges batteries between 5-20 times faster than a standalone alternator.



• Very Simple to install:

No electronic Control Unit (ECU) issues. No complex wiring. No warranty issues. Fully prepared for smart alternators (regenerative braking).



• Optional Remote control
