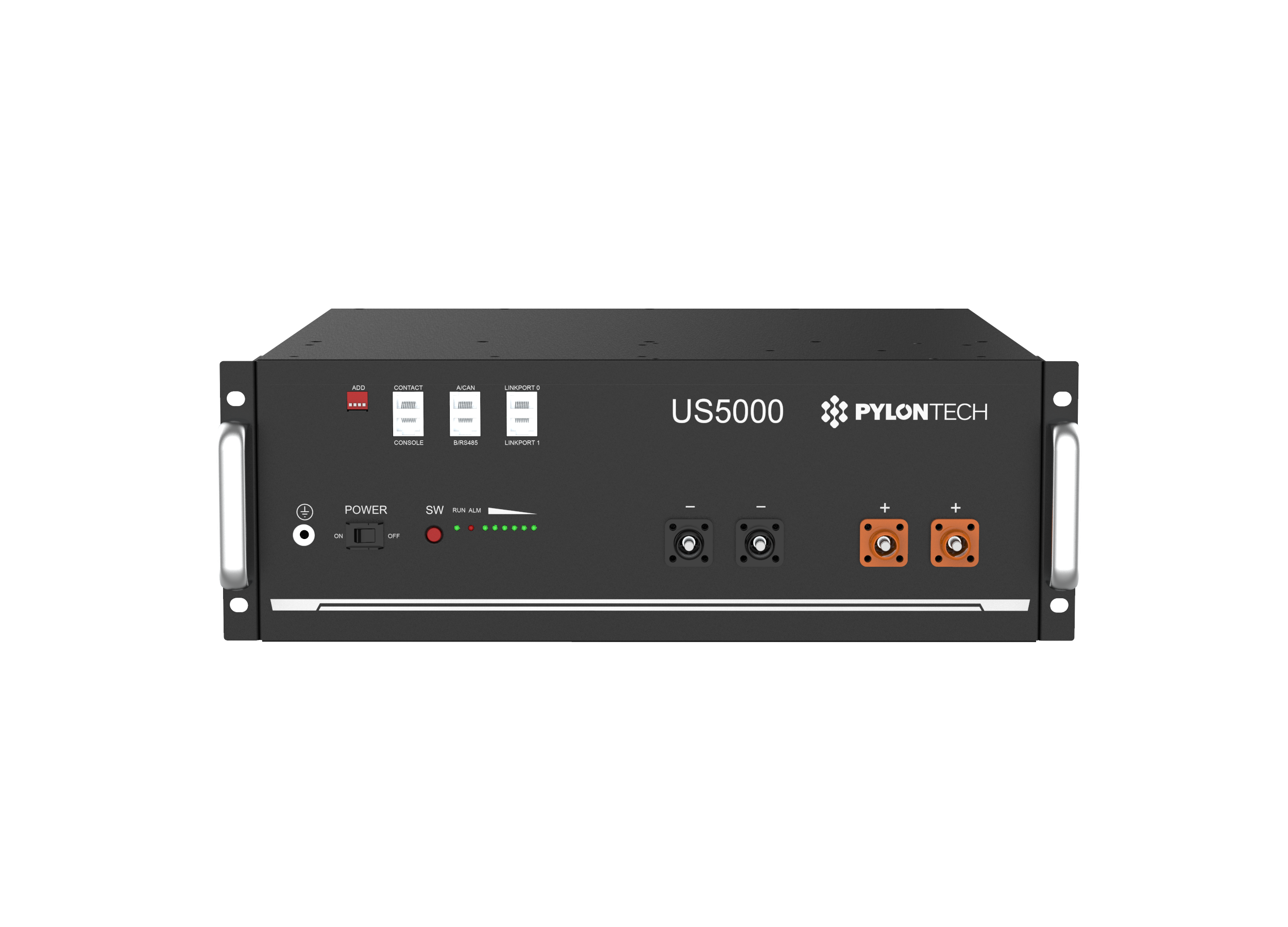

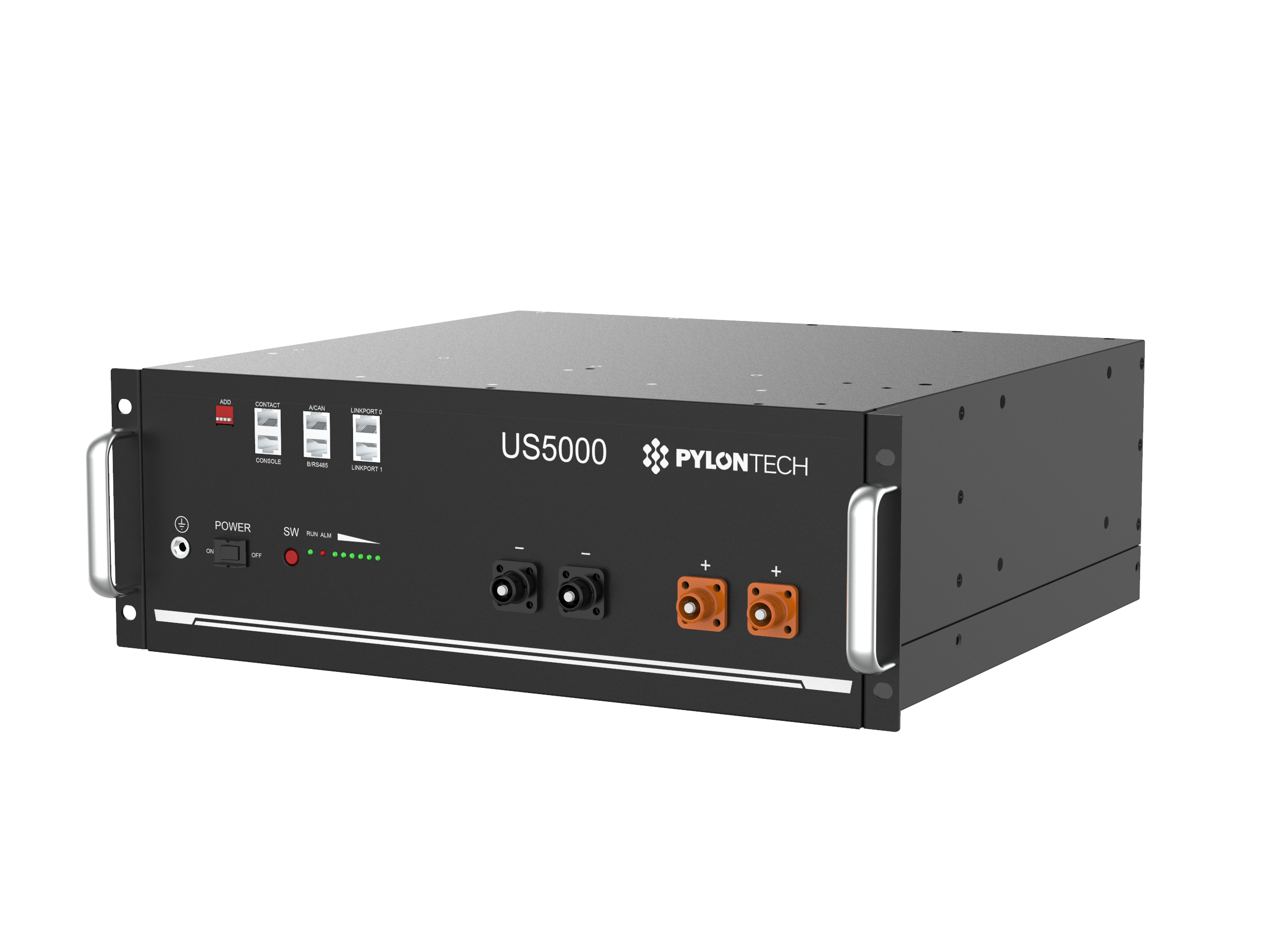

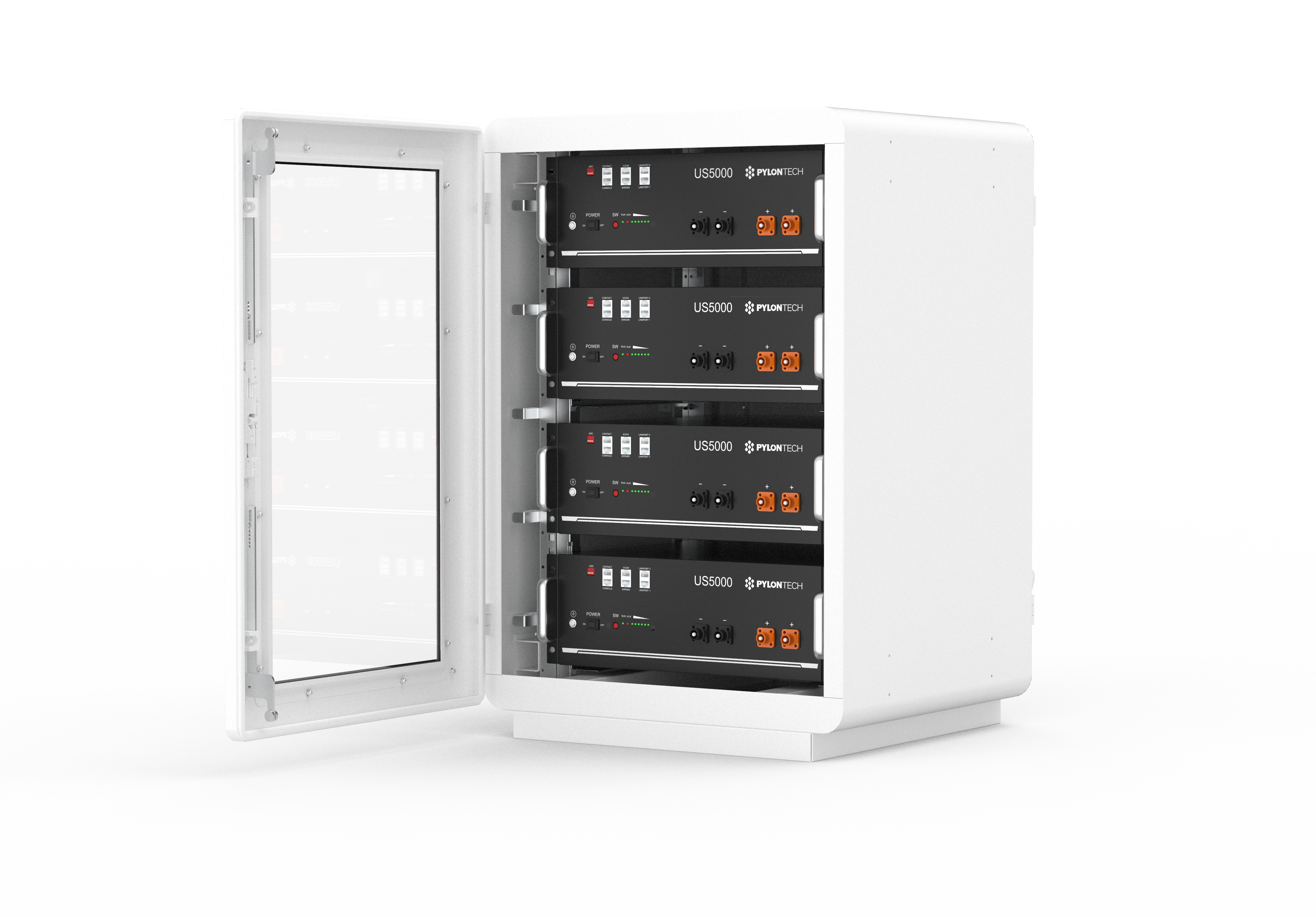

The Pylontech US5000 is a rechargeable lithium battery that utilizes LiFePO4 modules and has a standard 19-inch rack format. Its modular design allows for easy expansion of up to 16 modules(up to 72.96 kWh) without requiring HUB access, making it suitable for both small and large accumulation systems. Furthermore, this feature enables the system to occupy much less space while providing ample storage capacity.

This Pylontech lithium iron phosphate battery, is a dependable power source suitable for various types of equipment and systems. It comes with an integrated battery management system (BMS) that is capable of monitoring essential cell information such as voltage, current, and temperature, and providing protection based on this data. Additionally, the BMS can balance cells during the charging process to prolong the battery's cycle life.

The Pylontech US5000 48V/4,8kWh battery can be easily linked with a wide range of inverters that are currently available in the market. To ensure proper and secure operation, the battery features various communication parameters for sharing its charging information. The battery is equipped with a Canbus communications port and RS485 to establish communication with the inverters.

Features:

• Cathode material is made from LiFePO4 with safety performance and long cycle life

• The whole module is non-toxic, non-polluting and environmentally friendly

• Battery management system (BMS) has protection functions over discharge, over charge, over-current and high/low temperature

• The system can automatically manage charge and discharge state and balance current and voltage of each cell

• Flexible configuration, multiple battery modules can be in parallel for expanding capacity and power

• Adopted self-cooling mode rapidly reduced system entire noise

• The module has less self-discharge up to 6 months without charging it on shelf. no memory effect with excellent performance of shallow charge and discharge

• Build-in soft-start function able to reduce current strike when inverter need to start from battery.

• Compact size and light weigh

• Fast Charging

• Support upgrade battery module from upper controller via CAN or RS485
  communication.
