The Pole Mount System allows for easy installation and positioning of the solar panels at an optimal angle for maximum sunlight exposure. This solar panel installation system can be the best mounting solution for your home, off-grid cottage, and almost any other off-grid applications that you can think of.

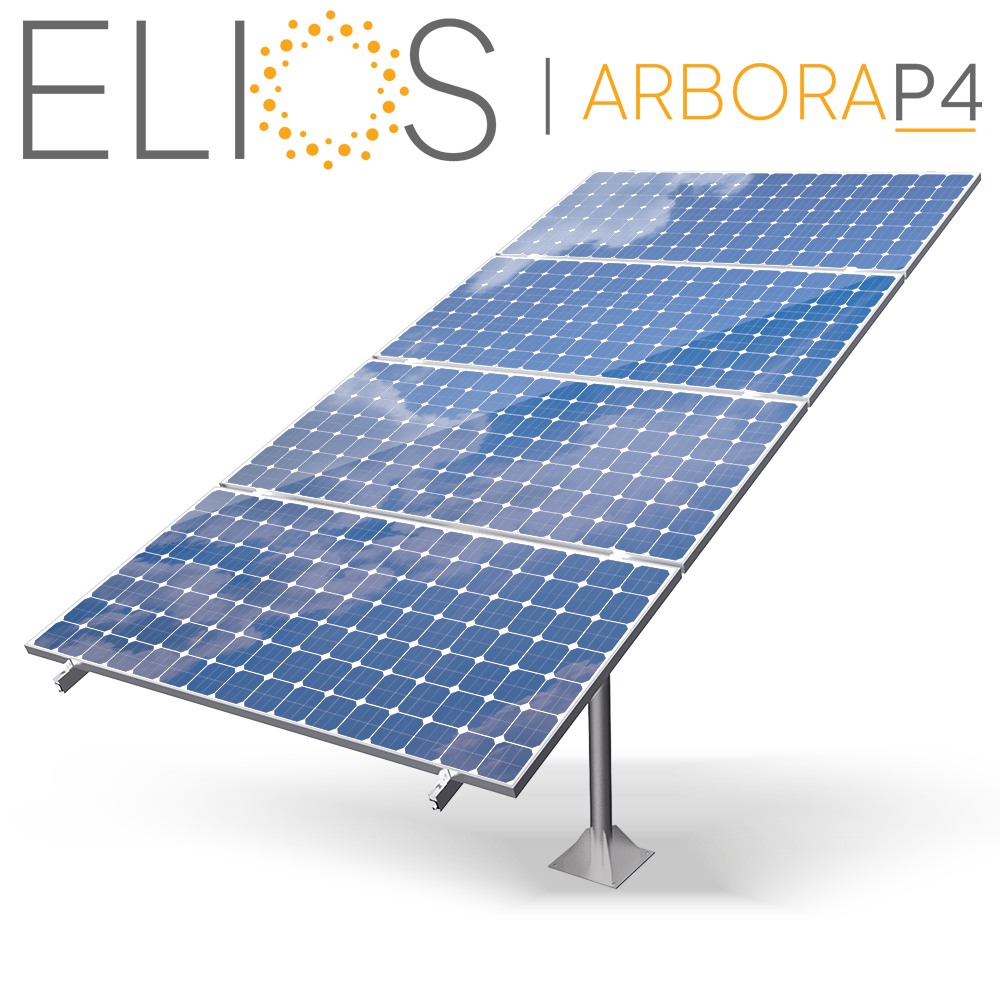

Elios Arbora four Solar Panel Pole Mount System is designed to provide reliable, clean energy for all your off-grid needs.

Features:

• Durable pole mount system that allows for easy installation and positioning of the panels at an optimal angle for maximum sunlight exposure.
• Adjustable Height and Angle according to the seasons
• Compatible with four Solar Panels of 60 or 72 cells
• Weather-resistant construction to ensure long-lasting performance in all conditions.

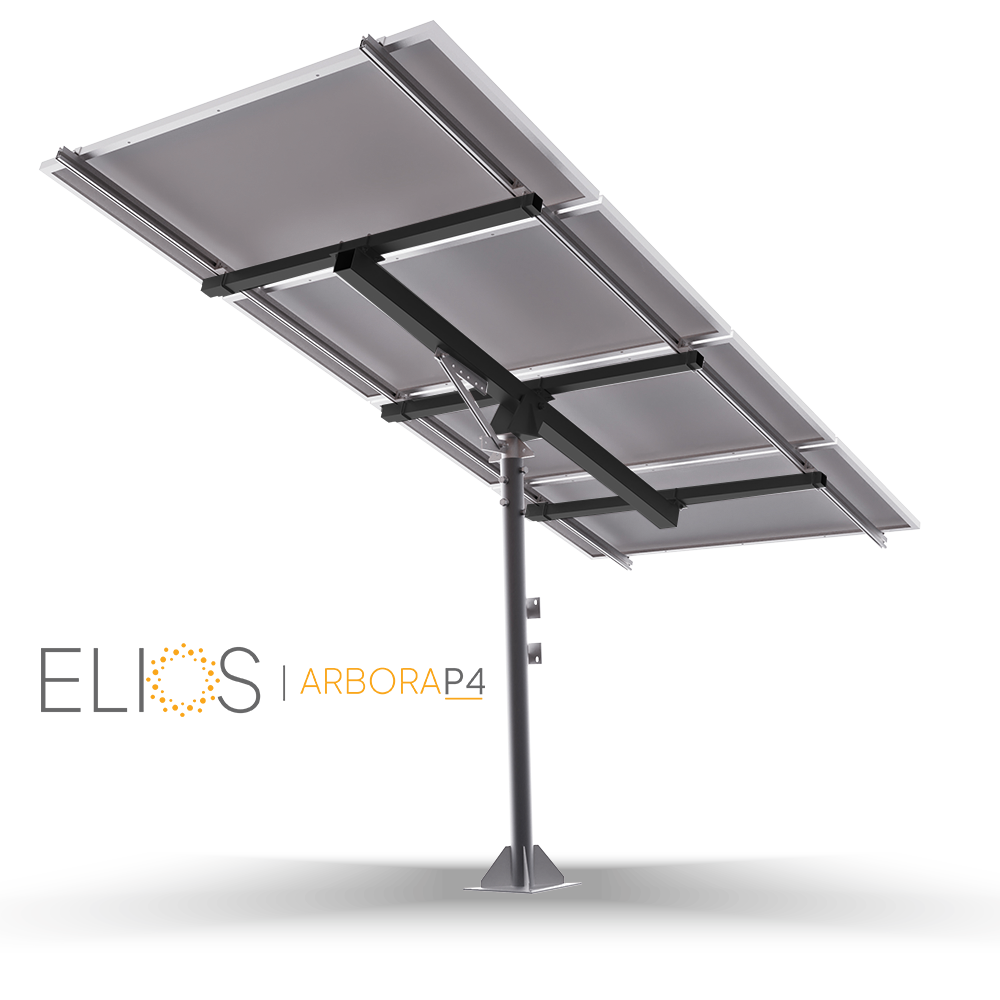

• Galvanized Steel Pole, Aluminum Rails and Clamps (for 35mm and 40mm solar panels) to provide exceptional performance in all weather conditions
• Stainless Steel Installation Hardware
• 14.37"x14.37" base with 4 anchor holes
• This Pole Mount System has a place to attach a rapid shutdown device to the face of the pole
• Easy to use and maintain, with a minimal number of components.
• Can be used for remote cabins, cottages and any other off-grid applications.
• The system comes with a 5-year limited warranty

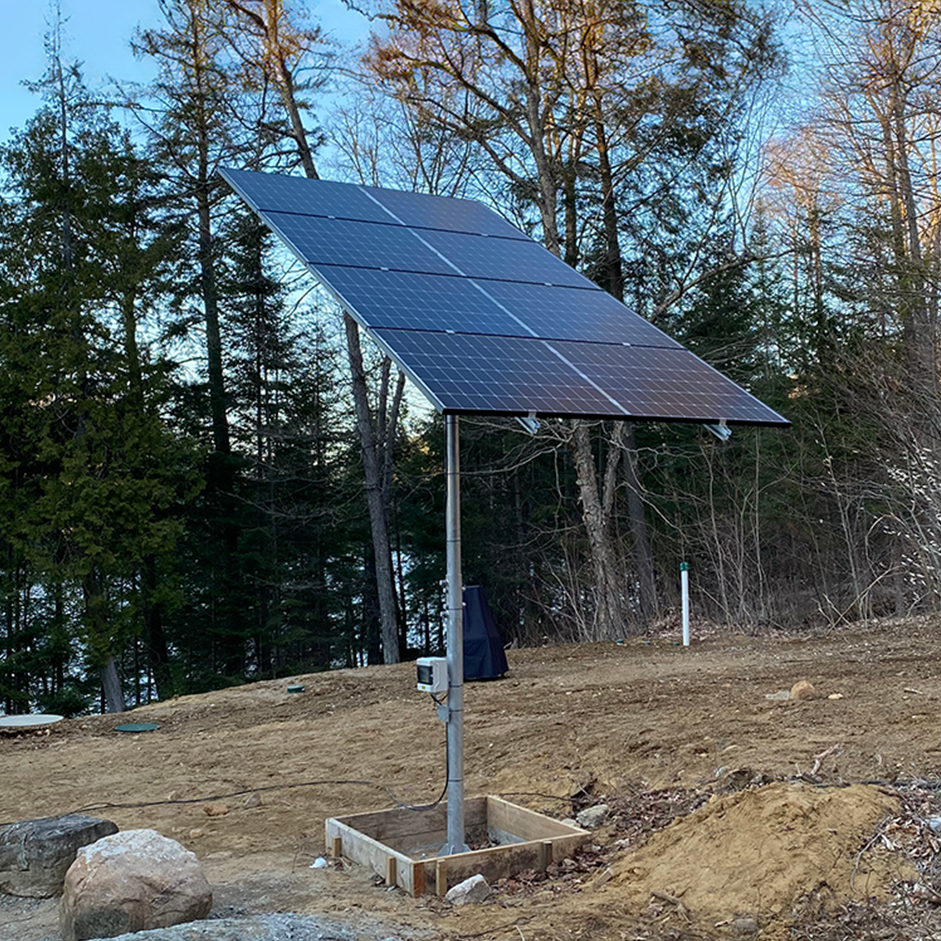

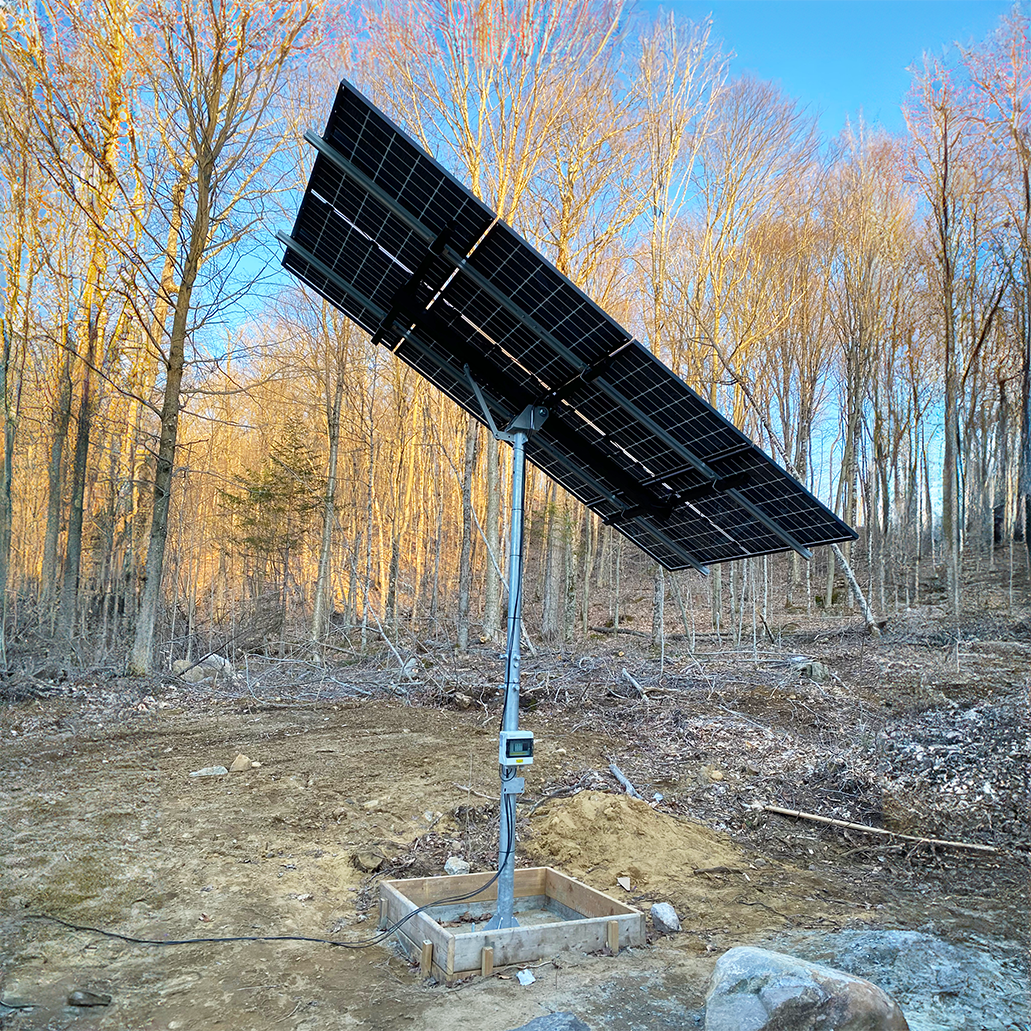

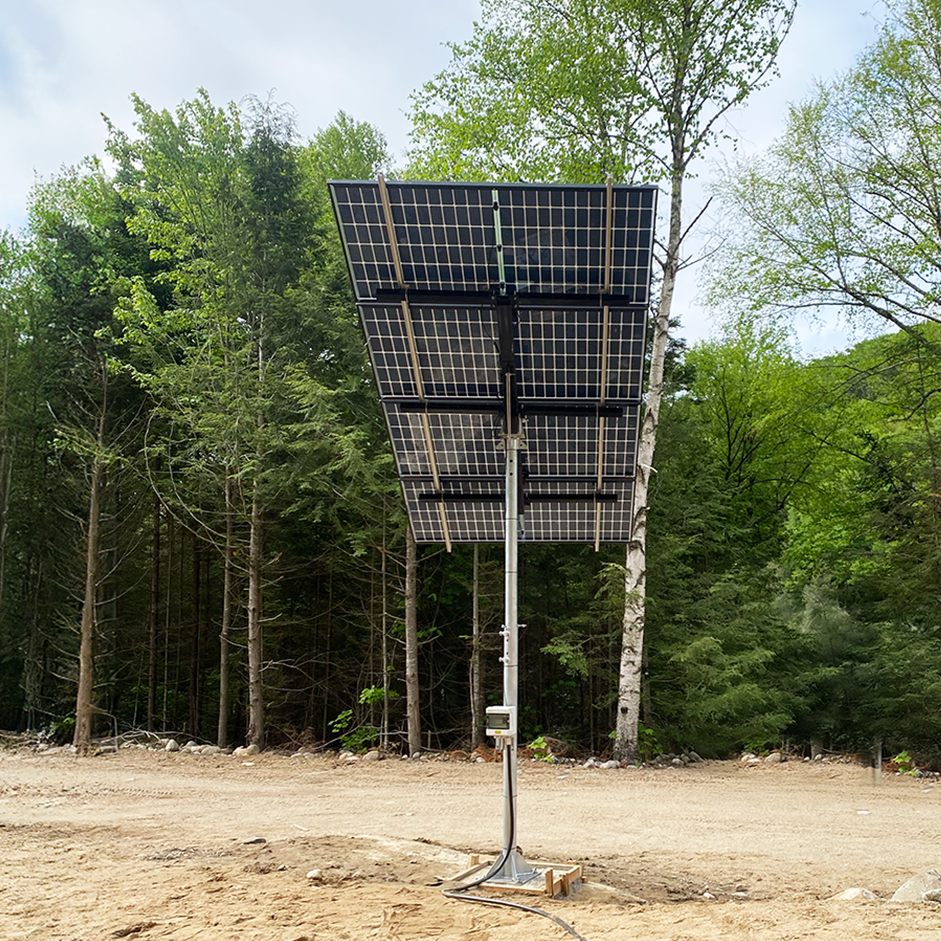

The Solar Panel Pole Mounts are recommended to be installed on the ground, with a concrete base using steel rods, and anchor bolts for maximum security. So that, even on high wind days, your installation will be as steady as ever.

You can install up to 4 solar panels on top-of-pole system producing a peak power of approximately 1300 to 1800 watts depends on the Nominal output of your solar panels. In addition, you can use Bi Facial Solar panels that utilize the reflection of the sun from the environment increasing the production by approximately 1000 watts to reach a maximum capacity of up to 3000 watts.

This product is composed of the necessary to assemble your pole for solar panels designed by Elios team.

The post is made of galvanized steel, and the top racking is also galvanized steel painted black. During transport, some minor defects in the paint or small chips may have happened.

Dimension:
